LCD Visual Chart (LCD-236)
  • LCD Visual Chart (LCD-236)
  • LCD Visual Chart (LCD-236)
  • LCD Visual Chart (LCD-236)

LCD Visual Chart (LCD-236)

23.6" LCD Screen, Full HD: 1920*1080; Polarizing function: Optical polarization glass panel, polarizing test, double eye balance test
Detailed description

LCD Vision Chart
Model no.: LCD-236

CE & US FDA


Characteristics

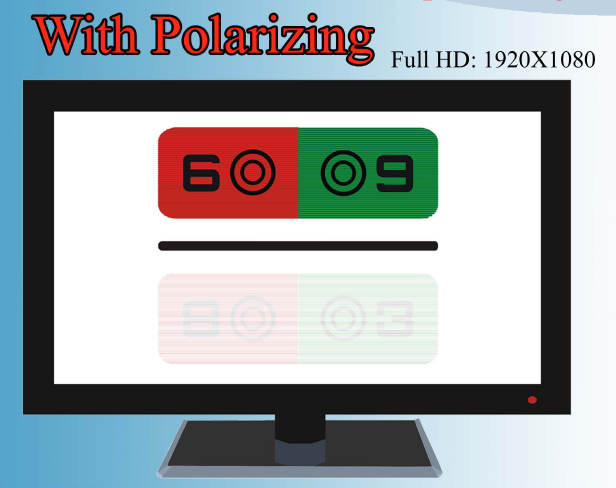

Polarizing function: Optical polarization glass panel, polarizing test, double eye balance test
Full HD 1920  x 1080
Mark axis
Night mode: you can use the remote control in the dark room
Red & Green deepness adjustment
Supports smaller rooms: working distance 2-6m (0.25m/step)
Color blind  ISHIHARA Test
Contrast test
Mirror display function
Placement: wallmount /on the Table
Specifications
Panel 23.6"
Pixel Pitch 0.2715mm
Max Contrast Ratio 1000:1
Max Resolution 1920 x 1080
Energy Consumption 45W
Net Weight 5.0KG
Gross Weight 7.2KG
Dimension with stand
(on the table)
190 x 415 x 554mm
without stand
(wall mount)
50 x 340 x 554mm
