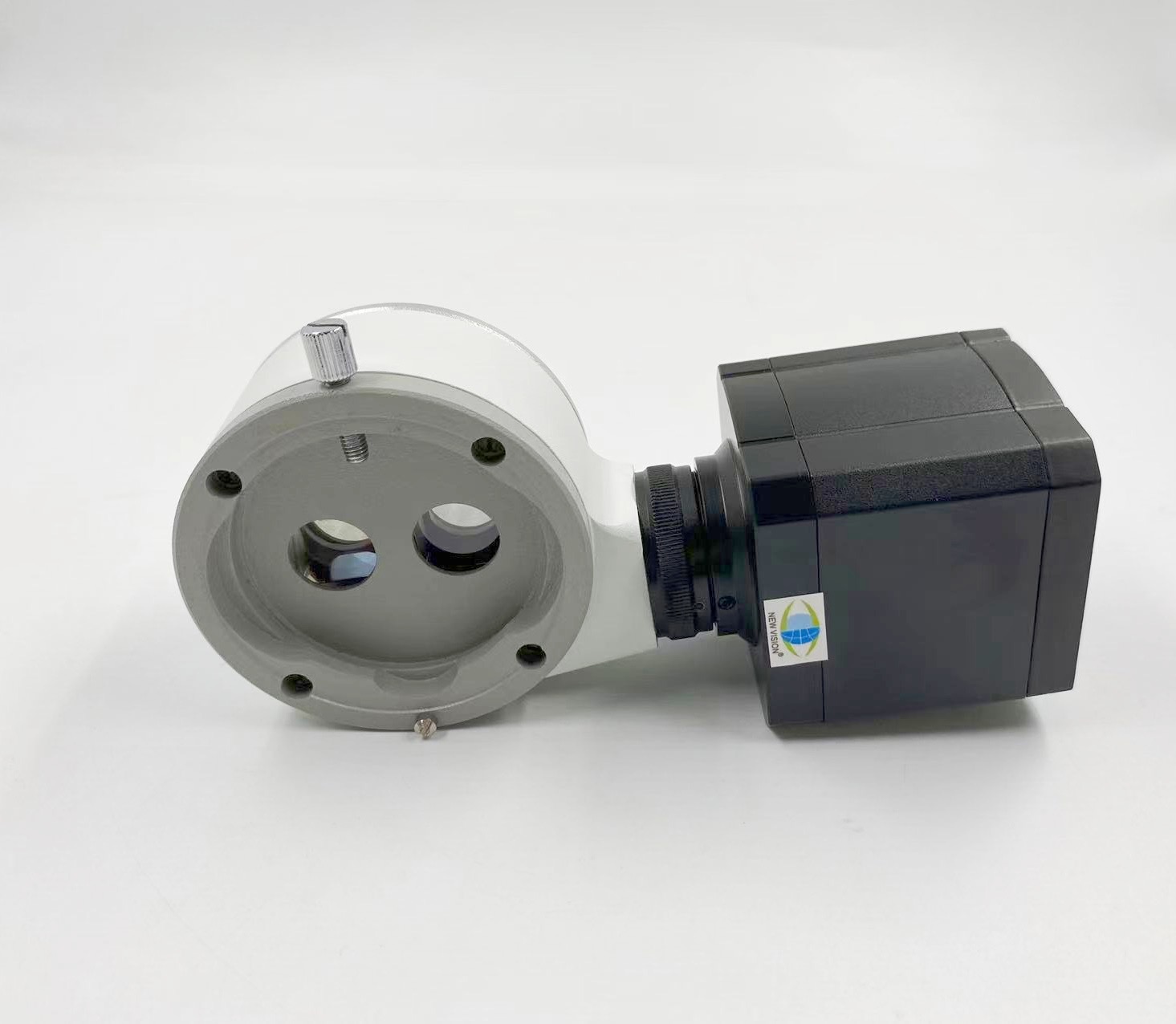

FHD Video Camera 14mpx

Camera Function Instruction

1. 14MP Japanese Panasonic COMS sensor.

2. This product has 14MP snap shot image and 1080P video recording. One button switches

   snap shot & video mode. The default mode is shot image, press the “MODEL” button to turn to video mode, press again come to preview mode. Press on the “MODEL” button the camera will switch among shot image, video mode and preview mode.

3. When the image ratio is 4:3 mode the photo’s resolution is 4320*3240 (14MP); when it is 16:9 mode the photo’s resolution is 4320*2432(11MP). There are two preview modes as 4:3 and 16:9. The photo’s format is JPG. The video recording’s resolution is 1920*1080 frames and the format is MP4.

4. The camera provides 8 times digital zoom, press the “UP” or “DOWN” button to zoom in and zoom out, long press to quickly zoom in or zoom out.

5. This product provides HDMI video output and the output is 1080P 60hz.

6. The product provides free drive 1080P 30FPS HD USB video output.

7. This product supports one-key freeze/unfreeze image, when power on, press the ON/OFF

   button to achieve these functions.

8. This product supports cross cursor function, there are up to 5 lines on horizontal and

   vertical which can be selected and movable, also, its color and size can be set, meanwhile it

   provides the center cross cursor display.

9. Support auto & manual exposure; support auto & manual white balance; support colors &

   Black-and-White monitor mode.

10. Support EV ( exposure compensation ) adjust.

11. Support English /Francais /Espanol /Portugues /Deutsch /Italiano /Chinese/Pyccknn/ Japanse

    language setting.

12. Support 50Hz, 60hz light source frequency setting.

13. Support HCSD TF card ( Class 4 ), max 32GB.

14. Supporttosavesettingfunctionafterpoweroff.
