Hand-held Slit lamp
  • Hand-held Slit lamp
  • Hand-held Slit lamp
  • Hand-held Slit lamp

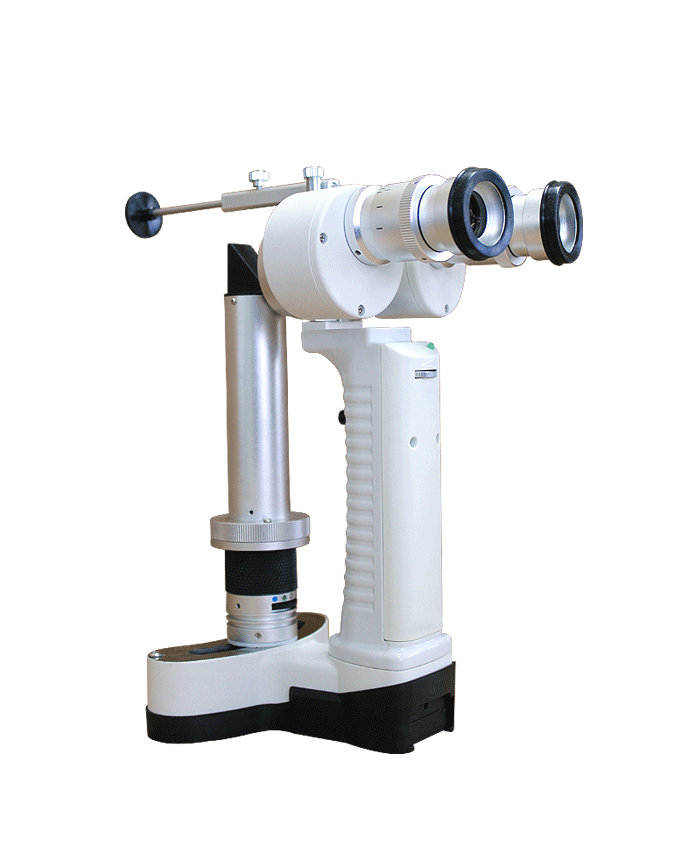

Hand-held Slit lamp

FEATURES: Lightweight, Single hand operated functions as a desktop slit lamp but ideal for pediatrics, Seniors, nursing home, carry-out or mobile hospital.
Detailed description

Portable slit lamp
Hand Held type
Model: KJ5S1 (4 aperatures: 1mm, 3mm, 5mm, 10mm)
Model: KJ5S2 (1 aperature: 10mm)
CE and FDA


Features
Lightweight, Single hand operated
functions as a desktop slit lamp but ideal for pediatrics, Seniors, nursing home, carry-out or mobile hospital.

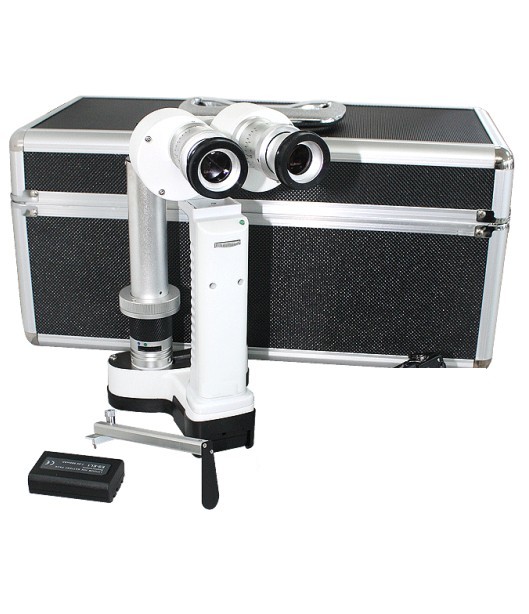

Packed in Alu-Alloy case
Specifications
Microscope Eyepiece 10x, 16x
Total magnifications 10x, 16x
Diopter adjustment +/-5D
Visual field Dia 10mm
PD adjustment range 45-70mm (at eyepiece 10x) and  50-70mm (at eyepiece 16x)
Working distance 78--80mm
Illumination Slit width 0-10mm
Slit length 1-10mm
Filters Cobalt blue, Green, Heat Absorption filter
Spot 1mm, 3mm, 5mm, 10mm (or 10mm)
Illmination angle On the level circumference +/-30degrees
Light source Light source High luminance white LED
Battery Voltage Li-ion battery 7.4V 680mAh
Operation time 2 hours (in full charged with maximum illumination)
Charger Imput voltage AC 100-240V 60-50Hz
Output voltage DC 12V 500mAh
Standard accessories Carrying case 1pc, Battery 2pc, Battery Charger 1pc, Forehead support 1pc, Diopter adjustment bar 1pc
Optional accessories 16x Eyepiece (1set), Spare battery 7.4V 680mAh (1pc)
Dimension and weight Dimension 195mm(W)x105mm(D)x230mm(H)
Net Weight about 750g (including a battery)
