Ultrasound Biomicroscope (UBM)
|

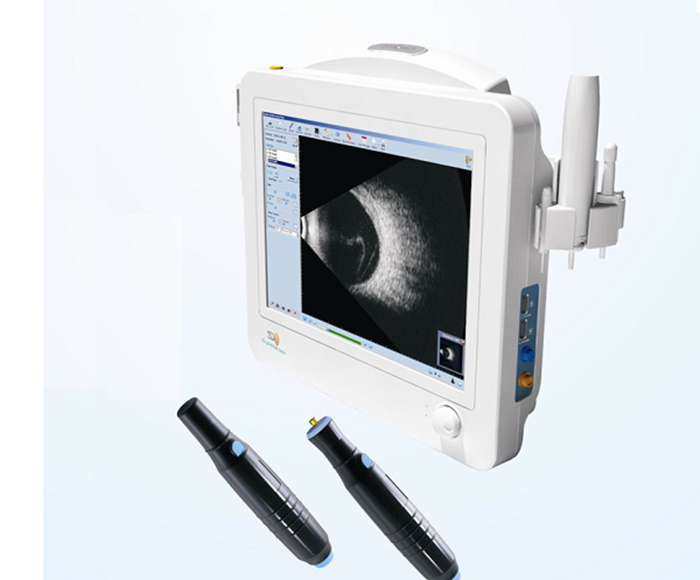

Ultrasound Biomicroscope (UBM) Model no.: NV-9200U US Made Probe
Highlights: |
| Integrated work Station |
| Compact body, easy carry with, touch screen |
| Hand Piece with contact or immersion probes |
| Activation switch on the probe |
| Easy to operate |
| Corneal protection, safe and reliable |
| Professional Angle, Area, and Ruler analysis software |
| Ultrasound Made Simple |
| One touch video file (AVI) saving function |
| Database transfers to PC by USB Port |
| Share Information Easily |
| Durable |
| Free software updates |
|
|
Specifications
UBM(Ultrasound Biomicroscope)
Frequency (MHZ): 48 MHz
Scanning Method:Variable field sector scanner
Gain (dB)( Frozen image gain adjustment):0-120 dB
Gain Curves: Logarithmic with user-selectable
window (contrast) and level (brightness) control
Field of View (Depth in mm): 32mm
Image Process: Adjustable Gamma: Linear, S-Curve,
Log, Color
Display Mode: UBM,UBM+A,
Anterior Segement Biometry: Single measurement of
cornea thickness,anterior chamber,depth (ACD),and lens thickness
ZOOM (x): live zoom(8x)
Reports: Microsoft Word™,Html or PDF
Measurement Calipers w/ velocity adjustment:
Length, angle ,Area
Snapshot (still image) format: Jpeg, bmp, png,
tiff
Packing List
Main
Unit
UBM
Probe (Made in USA)
Footswitch
Power
Line
Optional
Accessories
Bracket for Probe
Work
Table
