Portable Slit lamp
  • Portable Slit lamp

Portable Slit lamp

Hand Held slit lamp
Detailed description

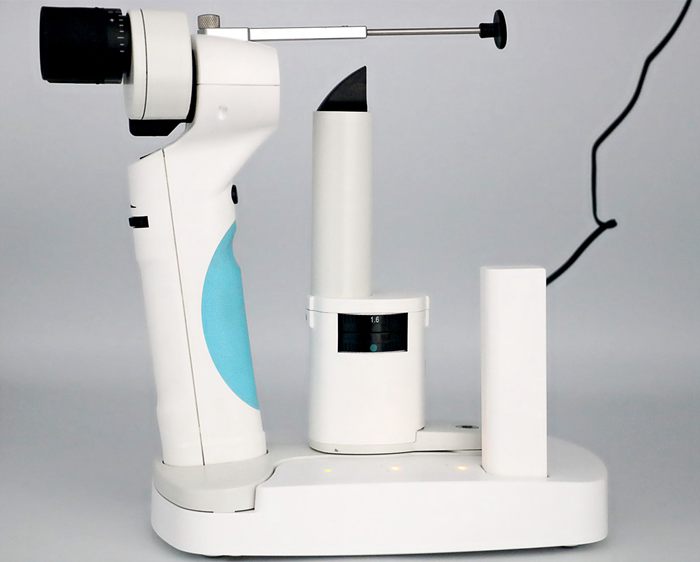

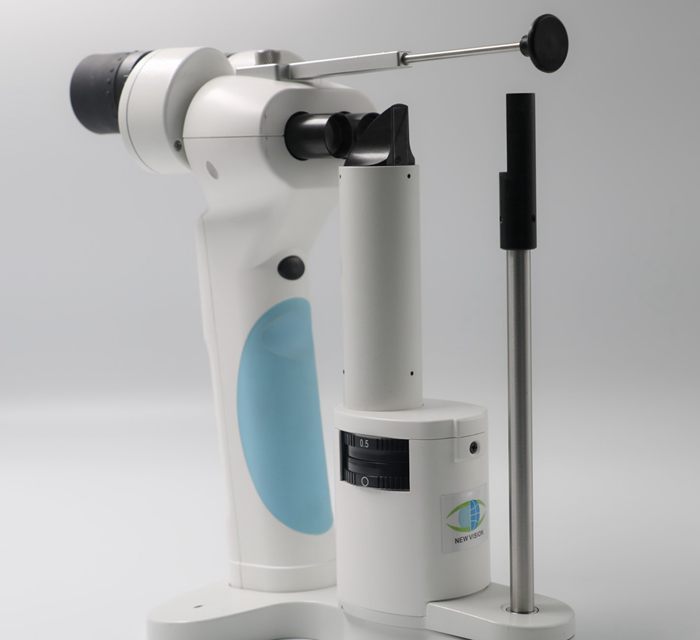

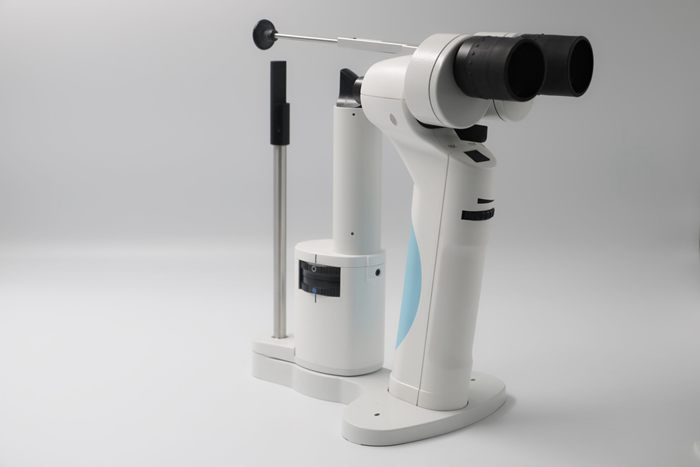

Hand Held slit lamp
YZ3
CE and FDA


Characteristics
Magnifications change via dialing the lever
Lightweight, Single hand operated
functions as a desktop slit lamp but ideal for pediatrics, Seniors, nursing home, carry-out or
mobile hospital.
Packed in Alu-Alloy case
Specifications
Total magnifications 10x, 16x by rotating objective lens
Diopter adjustment +/-6D
Visual field Dia 12mm
PD adjustment range 50-75mm
Working distance 60mm
Slit width 0-12mm
Slit length 1-12mm
Filters Cobalt blue, Green, Heat Absorption filter
Aperture 0.2mm, 1mm, 5mm, 12mm
Illmination angle On the level circumference +/-30degrees
Light source High luminance white LED
Voltage Li-ion battery 7.4V 680mAh
Operation time 6 hours (in full charged with maximum illumination)
Dimension 200mm(W)x115mm(D)x250mm(H)
Net Weight about 900g (including a battery)
