266, 355, 532, 1064nm Laser Safety Filter for Leica

Detailed description

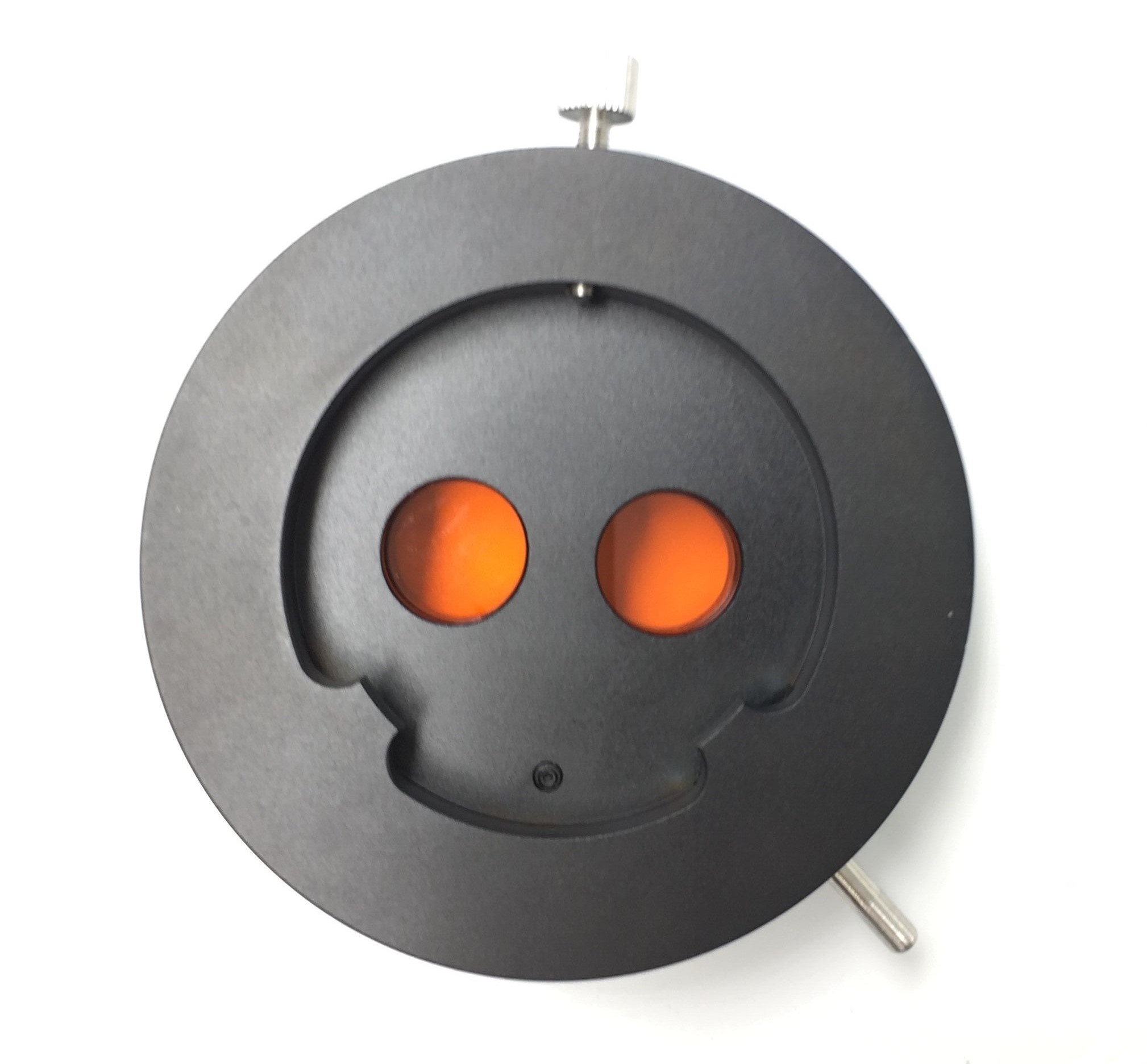

266, 355, 532, 1064nm Laser Safety Filter for Leica

Model: NV-LF-1064L

Laser Safety filter is designed for filtrating harmful waves so as to protect doctor's eyes when doing Laser surgery.

The filter lens can be shift to "off" position when laser surgery finished, and turn on when during surgery.

266, 355, 532, 1064nm Laser Safety Filter

Application: Nd:YAG (266, 355, 532, 1064nm), Ti:Saphir, Fibre, Disc

Material: special plastic

Filter color: amber

Filter thickness: appr. 4.0 mm VLT.: appr. 25 %

Diameter: 18,10 mm Tolerance: ± 0.5 mm

Protection levels according to EN 12254: DAB5+IRAB3(OD10+)

>180- 315 DAB5+IRAB7+MAB8(OD9+)>315- 532 D AB6 + IR AB7 + M AB9 (OD 9+) >847 - 1072

PF CE

These are the complete specifications for the Laser filter 266, 355, 532nm

D AB5 + IR AB3 (OD 10+) 180-315

D AB5 + IR AB7 + M AB8 (OD 9+) >315-532

DIRM AB4 (OD 4+) >532 - 541

DIRM AB3 (OD 3+) >541-544

DIRM AB2 (OD 2+) > 544-549

DIRM AB1 (OD 1+) >549-555

DIRM AB1 (OD 1+) >690-722

DIRM AB2 (OD 2+) >722-745

DIRM AB3 (OD 3+) >745-765

DIRM AB4 (OD 4+) >765-780

DIRM AB5 (OD 5+) >780-800

DIRM AB6 (OD 6+) >800-815

D AB6 + IRM AB7 (OD 7+) >815-830

D AB6+ IR AB7 + M AB8 ( OD 8+) >830-847

D AB6 + IR AB7 + M AB9 (OD 9+) >847-862

D AB6 + IR AB7 + M AB9 (OD 10+) >862-1065

D AB6 + IR AB7 + M AB9 (OD 9+) >1065-1072

D AB6+ IR AB7 + M AB8 (OD 8+) >1072-1077

D AB6 + IRM AB7 (OD 7+) >1077-1083

DIRM AB5 (OD 5+) >1083-1094

DIRM AB4 (OD 4+) >1094-1102

DIRM AB3 (OD 3+) >1102-1112

DIRM AB2 ( OD 2+) >1112-1125

DIRM AB1 ( OD 1+) >1125-1150

PF CE
