Advanced LED Surgical Microscope

Detailed description

OMS2650 LED Surgical Microscope

CE & US FDA approved.

Features:


Excellent optics
German lenses, multi-layer coatings
Lens made of imported glass from Germany to reduce the optical aberration.
All of lenses are apochromatic, multi-layer coated and anti-reflective.

Reliable X-Y coupling
With one button design and no complicated settings, The X-Y coupling enables guided movement in one plane.

Ergonomic foot panel
Without distraction and interruption, you can conveniently adjust the light intensity, level of focus, X-Y positioning, and recover focus position.

Comfortable LED illumination
Brilliant red reflex, natural colors, more contrast as well as lower energy and maintenance costs, and no harmful IR or UV radiation for the patient.

Easy and Comfortable Operating
0~180° inclinable binocular (option)
Inclinable binoculars feature the widest range of any binocular for user comfort.

Rotatable Handgrip
Rotatable handgrip can be adjusted to user's preferred position and enable the user to easily place the OMS in the desired position.

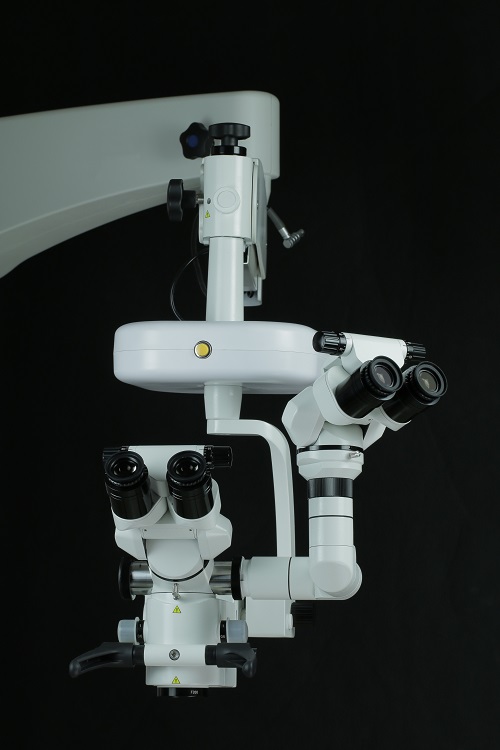

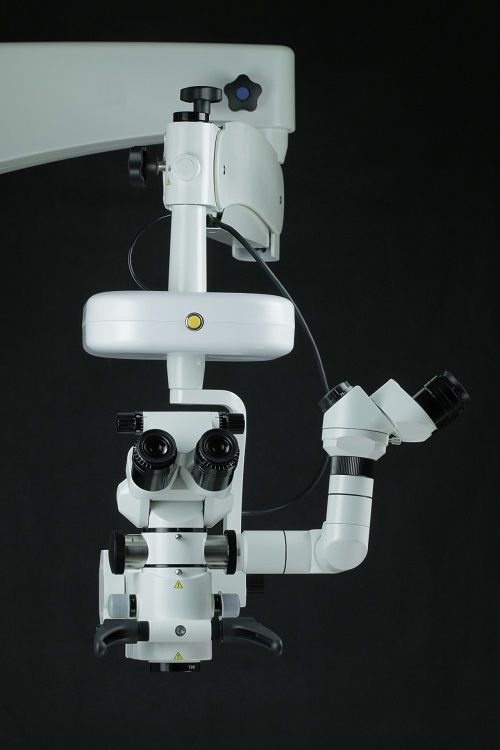

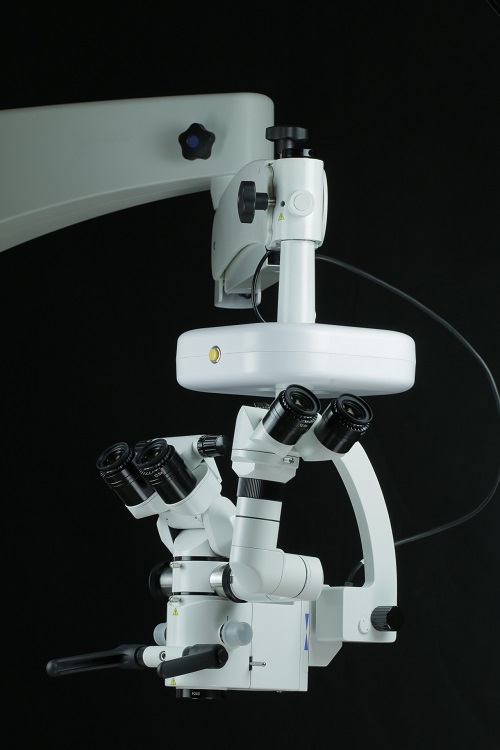

Assistant's microscope (option)
Stereo coobservation device
A stereo device which can be adjusted in the three axes is available for coobservational. It can be fitted with either a stragith or inclined

Specification:
OPTICS	Optic Lens	Schott ® lens
	Eyepiece	12.5X wide-angle eyepiece (optionally also 10X)
	Inclinable Binocular	0-180° adjustable
	Objective Lens	f=200
	Diopter Adjustment	±7D
	Pupil Distance	54mm~76mm
	Magnification	5 Steps by drum rotation
	Steps of Magnification (Y)	0.4X, 0.6X, 1X, 1.6X, 2.5X
	Total Magnification	4.3X, 6.8X, 10.6X, 16.9X, 26.5X
	Field of View diameter	52mm, 33mm, 21mm, 13mm, 8.3mm
	Focusing	Motorized, focus range 40mm; 5 optional objective lenses: F200; X-Y coupling range: 40mm x 40mm; one button on side
ILLUMINATION	Illumination Source	LED with life time > 60, 000 hours
	Filter	Red free, Retinal Protection filter
	Red Reflex	Yes
	Light Control	Foot Control
	Input Voltage	AC220V±22 V / 50Hz±1Hz, AC110V±11V /60Hz±1Hz
BASE PART	Reaching Radius of the second Arm	600mm; rotation +/-150 degrees, +/-300mm up and down
	Reaching Radius of the first Arm	500mm; rotation 360 degrees
	Reach of Arm	1350mm
	Height	1750mm
	Basement	620mm*610mm
	Foot switch	12-Function foot switch
PACK	Packing Volume	0.9 CBM, 1 Carton
PACK	Total Weight	130 KGS
