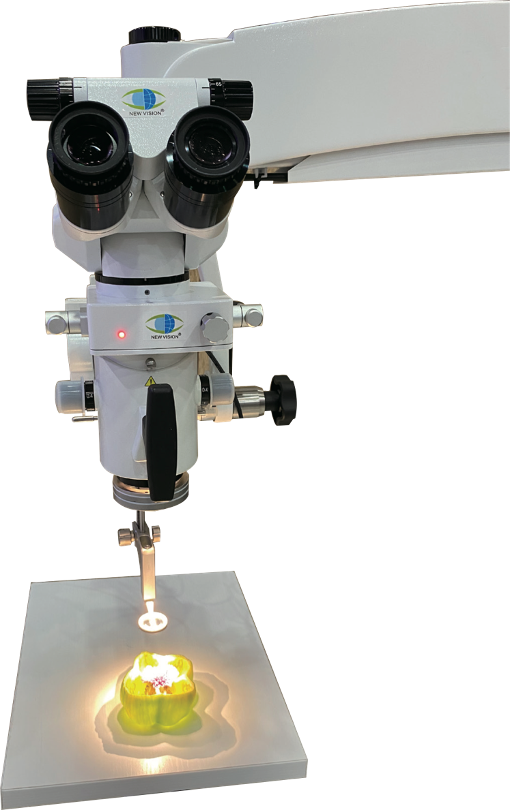

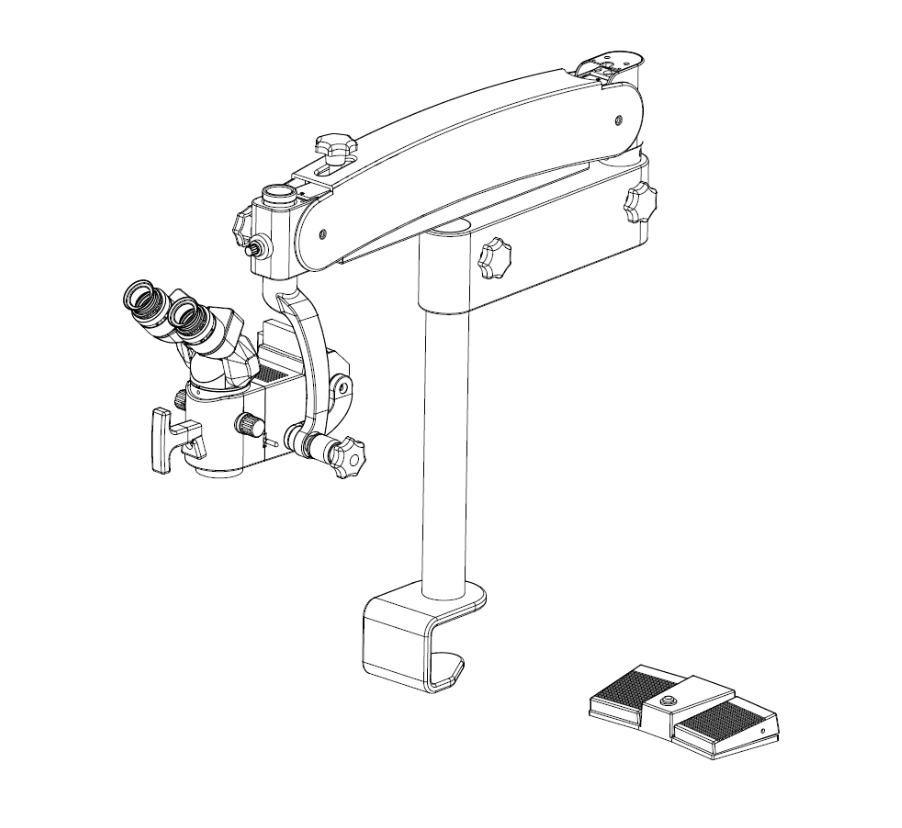

WetLab Microscope
Wet Microscope
LED illumination
Portable, with travel case.
Available for Ophthalmology, ENT, and hand surgeries.
Specifications:
|
Optic Lens |
Schott lens |
|
|
Eyepiece |
12.5X wide-angle eyepiece (10X optional) |
|
|
Inclinable Binocular |
0-180°adjustable |
|
|
Objective Lens |
f=200 |
|
|
Diopter Adjustment |
±7D |
|
|
Pupil Distance |
54mm~76mm |
|
|
Magnification |
5 Steps by drum rotation |
|
|
Steps of Magnification (Y) |
0.4X, 0.6X, 1X, 1.6X, 2.5X |
|
|
Total Magnification |
4.3X, 6.8X, 10.6X, 16.9X, 26.5X |
|
|
Field of View diameter |
52mm, 33mm, 21mm, 13mm, 8.3mm |
|
|
Focusing |
Motorized, focus range 40mm; 5 optional objective lenses: F200; |
|
|
Illumination Source |
LED with life time > 60, 000 hours |
|
|
Filter |
Red free, Retinal Protection filter |
|
|
Red Reflex |
Aspheric Design |
|
|
Light Control |
Yes |
|
|
Input Voltage |
AC220V±22 V / 50Hz±1Hz, AC110V±11V / 60Hz±1Hz |
|
|
Foot switch |
Z Axis up and down, Reset |
|
|
Packing |
1 carton, 0.16CBM, with travel case |
|
|
Total Weight |
33 KGS |
