Operation Microscope (YZ20P5)

Ophthalmic surgical microscope
Detailed description

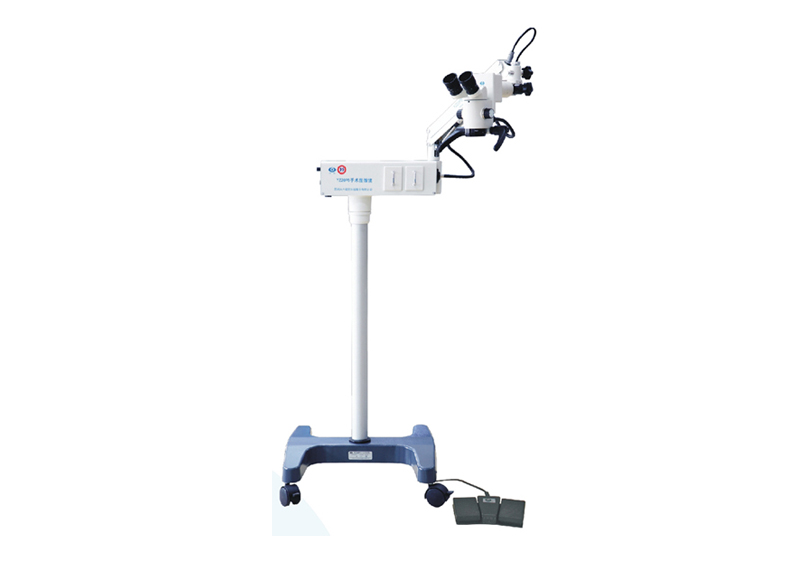

Operation Microscope Ophthalmology
Model: YZ20P5

Portable Style

The product is a simple coaxial illumination operation microscope for one surgeon. It is portable, compact and can meet the requirements of general ohthalmology operations, usually applied in mobile hospital.
Characteristics:
· All the lenses are multi-coated, transmissivity enhanced, mildewproof and anti-reflective.
· The microscope can focusing by foot-control, it has three steps magnification (or five steps) and  has a good field depth and bino-combination. It can cater the requirements for cataract operation.
· Optional objectives: f250/f300/f350f/f400.
· Column stand can be reflitted to holding stand.It can also be customized according to various operation requirements.
Specifications:
Eyepiece Magnification  12.5×
Objective Lens f=200
Working Distance 190mm
Magnifications for Main Microscope 5.3x,  8x,  12x
Diameter of Field φ37mm, φ25mm,  φ16.7mm
Diopter Adjustment ±7D
Pupil Distance 50mm80mm
Maximal Resolution 100LP/mm
Illumination Source 12V/100W, medical cold reflection halogen lamp
Illumination Type 6°+0°Coaxial cold light source illumination
Coaxial Illumination 30000lx
Reaching Radius of Arm 870mm
Adjustable Vertical Range 700mm1100mm
Fine Focusing Range 30mm
Input Voltage AC220V±22 V / 50Hz±1Hz,  AC110V±11V /60Hz±1Hz
Power 120VA
Fuse AC250V T1.25A ,  AC125V T2.5A
Electrical Safety Standard Executive Standard: GB9706.1-2007,  type I
Packing Volume 0.2m3, 1carton
Total Weight 41kg
