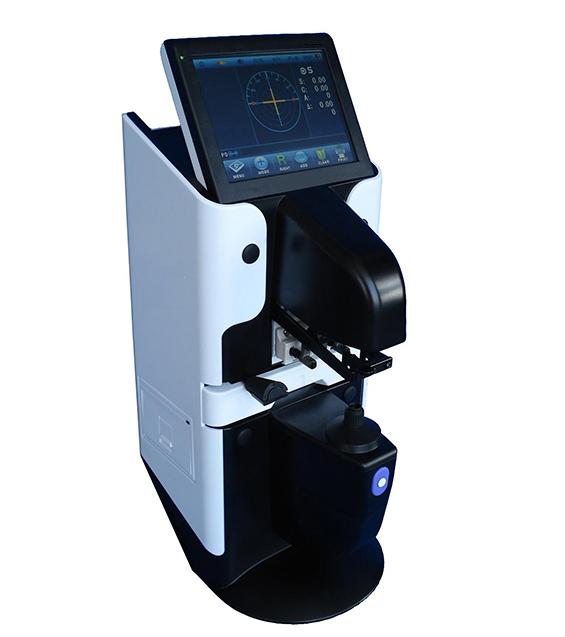

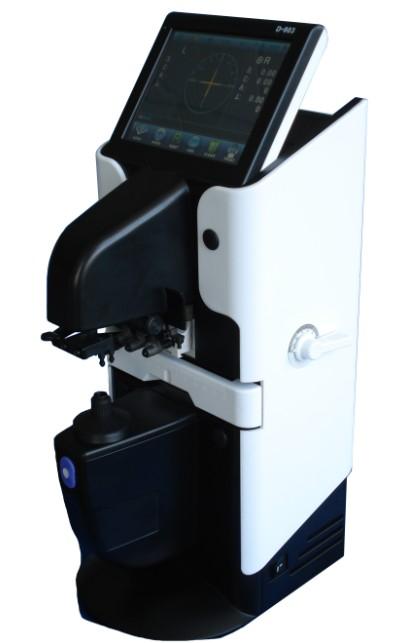

Auto lensmeter (JD-2600)

5.6" LCD Touch, colour and tilt screen, Accurate measurement. PD, UV, and Printer function Both contact lens and hard lens are available.

Detailed description

Feature
5.6" Adjustable LCD color screen
Large, Color and sensitive touch screen
Accurate measurement.
Progressive Measurement
PD and UV function
In-built thermal printer
Both contact lens and hard lens are available.

Range of Measurement
Sphere	－25D～＋25D 0.01/ 0.12/ 0.25D step
Cylinder	－9.99D～＋9.99D 0.01/ 0.12/ 0.25D step
Axis	0～180° 1° steps
Addition	0D～＋9.99D 0.01/ 0.12/ 0.25 step
Prism degree	0～15 0.01/ 0.12/ 0.25 step
Measurement Mode
Cylinder	+, -, +/-
Prism	X-Y, P-B
Contact lens	Soft/ Hard
Measurement Mode	Single/ Progressive/ Contact lens
Specifications
Diameter of Lens	Ø20-108mm
Pupil Distance	40mm～90mm, 0.25 step
Speed	0.1s
Display	5.6" TFT LCD 758x480 pixels
Print	Thermal Printer
Dimension	222(H)x161(W)x372(H)mm
Package	515(H)x320(W)x360(H)mm
Net Weight	Approx 5kgs
Power supply	100～240V, 50/60 Hz
