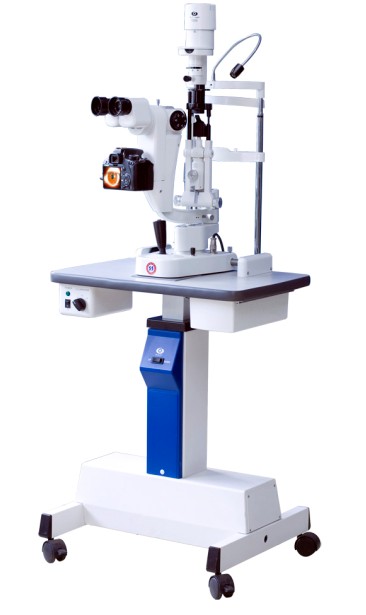

Digital Slit lamp (YZ5T )
Galilean stereoscopic microscope provides a great third dimension and large-angle observation.
In-built Integrated beamsplitter with camera adapter
Detailed description
Digital Slit lamp with professional software
Model no.: YZ5T
CE and FDA
| For photography of cornea, sclera, anterior chamber, iris, lens, retinal and set up patients' database | |
|
|
|
| Characteristics | |
| What doctors see from eyepieces is live on the monitor of both camera and PC. | |
| Images are taken by joystick, or "Space" key of keyboard, or button of software | |
| Up to 18 megapixel via Canon or Nikon DSLR camera. | |
| Background illumination specifically designed for darkroom environment, for better cornea photography. | |
| Professional software for images capturing, processing, and patients database management. | |
| Specifications | |
| Microscope Type | Galilean stereoscopic microscope |
| Magnification | Five Steps by drum rotation |
| Eyepiece | 12.5X |
| Field of View | 6 x (φ33) 10x(φ22.5) 16x (φ14) 25x (φ8.8) 40x (φ5.5) |
| Range of Pupil Distance | 45 mm~75 mm |
| Adjustment of Diopter | -5D~+3D |
| Slit Width | 0mm~14mm adjustable(slit is round when the slit width is 14mm) |
| Slit Height | 1mm~14mm adjustable |
| Aperture Diameter | φ14mm, φ10mm, φ5mm, φ2mm, φ1mm, φ0.2mm |
| Slit Angle | 0°~180° adjustable |
| Slit Inclination | 5°, 10°, 15°, 20° |
| Filter | heat absorption, grey, redfree, cobalt blue |
| Illumination Bulb | 12V/ 30W Halogen Bulb |
| Maxial Illuminance | ≥280000 Lx |
| Preceding Mirror | －58.7D |
| Collection Medium | DSLR Camera |
| Illuminations Type of Filming | Background illumination |
| Input Voltage | AC220V±22 V, AC110V±11 V |
