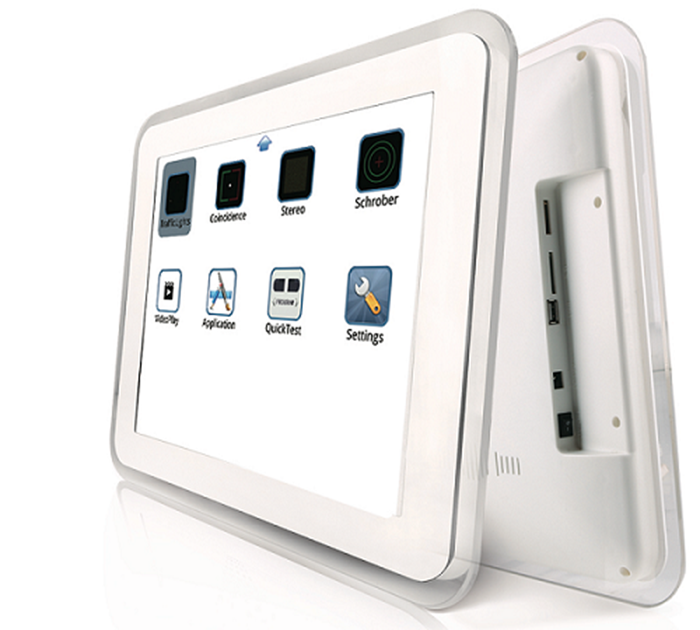

LED Visual Chart (C-901)
LED Visual Chart
Detailed description
| LED Vision Chart | |
| Model no.: C901 |
| Specifications | ||
| LED | Type | 17” Panel with long-lasting backlight |
| Resolution | 1920*1080 pixels | |
| Brightness | 160cd/m 2 (min. ) | |
| Charts | Optotypes | Tumbling E, Landolt C, Alphabet, Numbers, Children. |
| Mask type | Single Mask, Horizontal Mask, Vertical Mask, White/Black Mask, Red/Green Mask | |
| Special Chart | ETDRS, Contrast Sensitivity Test, Contrast Test, Ishihara, Cross Cylinder, Astigmatic Fan Dial, Cross Grid, Fixation Spot Test, Stereo Test, Red/Green Panel, Worth Four-Dot Test, Red/Green Balance, Street Lamp, Horizontal Coincidences, Vertical Coincidences, Schober. | |
| Other functions | Video Playing, Audio Playing, Randomization Optotypes Playing, Mirror function, Screen Saver function, Standby function. | |
| Visual Unit | Decimal (0.04)-(2.0) | |
| 20ft (500)-(10) | ||
| 6m (150)-(3) | ||
| LogMAR (-0.3)-(1.4) | ||
| 5-Grade (3.6)-(5.3) | ||
| Working Distance | 2m- 7m, 0.1 step | |
| 6ft- 24ft (in steps of 0.5ft) | ||
| Power Supply | Input | AC 220V-230V ± 10%, 50/60 Hz |
| Output | 12V DC | |
| Consumption | 20Watt (max) | |
| Remote Controller | IR Remote, AAA Battery | |
| Packaging | Dimension | 500mmx 440mm x 210mm (L/W/H) |
| Gross Weight | 7KGS | |
| Net Weight | 1.75KGS | |
| Standard Accessories | Remote Controller, Wall Bracket, Desk Bracket, Red/Green Glasses, Optotypes Card, Power Cable, AC-DC Adapter | |
