Operating Microscope (YZ20T9)
  • Operating Microscope (YZ20T9)
  • Operating Microscope (YZ20T9)
  • Operating Microscope (YZ20T9)
  • Operating Microscope (YZ20T9)

Operating Microscope (YZ20T9)

Magnifications for Assistant Microscope 6x , 10x , 14x
Detailed description
Operating Microscope for Ophthalmology
Model: YZ20T9

FDA and CE

The product is a double binocular operation microscope designed for two men.It has excellent optical performance and it is comfortable to be used.

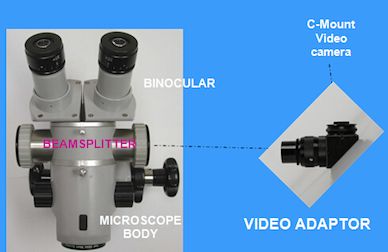

Available for digital by introducing HD Video recording system

Eyepiece Magnification  12.5×/18B
Objective Lens f=200
Working Distance 190mm
Magnifications for Main Microscope 4×, 6×, 10×, 16×, 25×
Magnifications for Assistant Microscope 6×, 10×, 14×
Diameter of Field 58mm, 38mm, 23mm, 14mm, 9mm
Diopter Adjustment ±7D
Pupil Distance 50mm75mm
Maximal Resolution 119 LP/mm
Focusing Range for Assistant Microscope 30mm
Illumination Source 12V/100WCold Reflection Halogen Bulb for Medical Use
Illumination Type 6°+0°coaxial illumination of cold light source and 20°Oblique Illumination (It can be used as slit illumination) Slit Width is adjustable
Coaxial Illumination 50000lx
Oblique Illumination 45000lx
Reaching Radius of Arm 1240mm
Adjustable Vertical Range 850mm1350mm
Fine Focusing Speed and Range 2mm/s,≥50mm
Speed for X/Y and Range 2mm/s50mm×50mm
Input Voltage AC220V±22V/50Hz±1Hz,  AC110V±11V/60Hz±1Hz
Power 330VA
Fuse AC250V T4.0A, AC125V T8.0A
Electrical Safety Standard Executive standard :GB9706.1-2007, Class I
Packing Volume 0.786m35cartons
Total Weight 213kg
Packing Volume  0.756m35cartons
Total Weight 215kg
